| Place of Origin: | Jiangsu,China |
| Brand Name: | OEM/ODM |
| Certification: | CE |
| Model Number: | 100V 500W |
| Minimum Order Quantity: | 100 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Color box,Blister bag |
| Delivery Time: | 15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Name: | 100V 500W Quartz Halogen Bulb | Voltage: | 100V |
|---|---|---|---|
| Power: | 500W | Base Type: | GY9.5 |
| Lumen Flux（lm）: | 12500 Lumen | Overall Length: | 76mm |
| Light Center Height: | 36mm | Width: | 20mm |
| Color Temperature(CCT): | 3200k | Working Lifetime: | 50Hours |
| Material: | Quartz Glass+Stainless, UV Quartz Glass | Color: | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Dimmable: | YES Or NO Customized | Application: | Optical Instrument Microscope Lamp |
| High Light: | 100V 500 watt quartz light bulb,500 Watt Quartz Light Bulb G22,microscope light bulb |
||

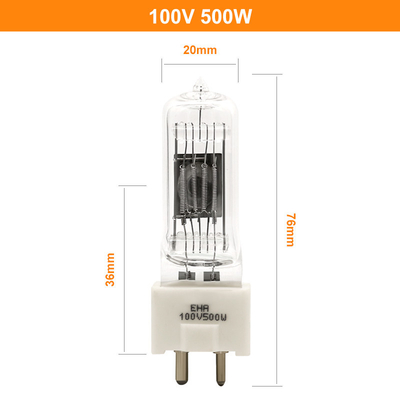

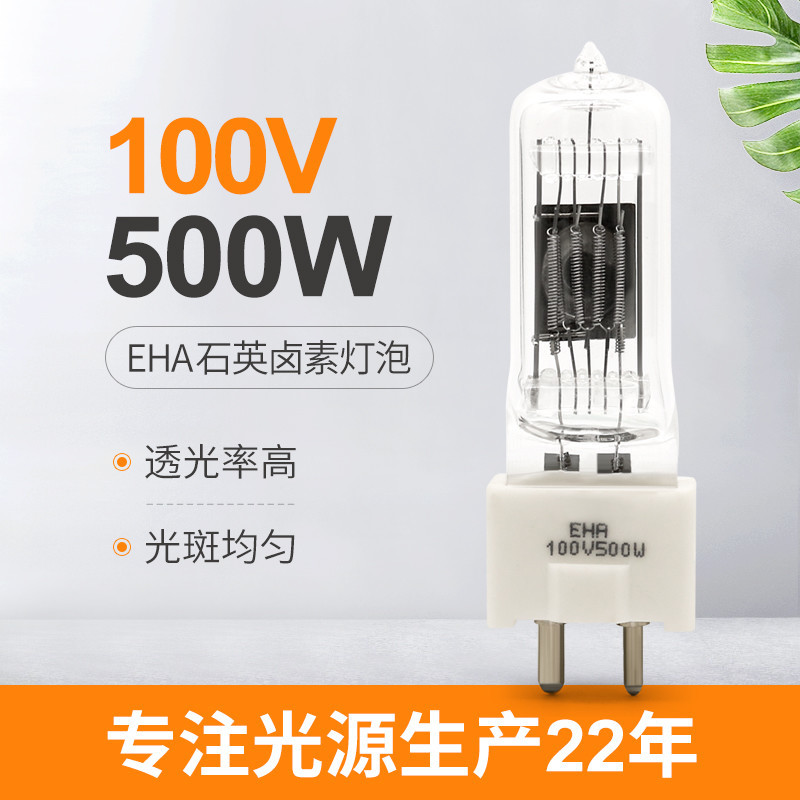

100V 500W G22 Optical Instrument Microscope Lamp
Quartz Tungsten Halogen (QTH) lamps are a common alternative to arc lamps. Compared with arc lamps, QTH lamps have better output stability, do not produce strong ultraviolet radiation, have no obvious peak lines in their output spectrum, and do not produce toxic ozone. These advantages over traditional arc lamps make QTH lamps ideal for radiometric and photometric applications and as excitation sources for visible to near-infrared light.
High intensity visible to NIR output with minimal UV radiation
Output spectral curve smooth
A variety of lamp power optional
Some bulbs can be mounted on bases in bare air
Specification Of Quartz Halogen Bulb
| Name | 80V 1200W 230V 1000W Quartz Halogen Bulb |
| Voltage | 80V 230V |
| Power | 1200W 1000W |
| Base Type | G22 |
| Lumen Flux(lm) | 30000 Lumen |
| Color Temperature(CCT) | 3200k |
| Overall Length | 136mm |
| Width | 26mm |
| Light Center Height | 63.5mm |
| Protection Class | Class 1 |
| Color | Yellow, Warm White , Blue Yellow, Clear/Bule/Yellow/Rainbow Customized |
| Application | Optical Instrument Microscope Lamp |
| Working Lifetime | 300Hours |
| Material | Quartz Glass+Stainless, UV Quartz Glass |
| Dimmable | YES Or NO Customized |
Application Of Quartz Halogen Bulb
A. Quartz Halogen Headlights
B. Quartz Infrared Heater Bulbs
C. Stage Light Halogen Bulb
D. Television Light Bulb
E. Quartz Halogen Spotlight Bulb
F. Tungsten Halogen Projector Lamp
G. Microscope Light Bulb
H. Aircraft Navigation Light Bulbs
I. Instrument Light Bulbs
J. Studio Lamp Halogen
K. Aircraft Halogen Lamp
L. Film Light Bulbs
M. Movie Light Bulb
N. Halogen Display Optic Lamp
O. Halogen Photo Optic Lamp
P. Quartz Lamp Iodine
Q. Marine Halogen Lights
R. Halogen Boat Lights
S. Auto Headlight Bulbs
T. Car Projector Headlight Bulbs
U. Medical Light Bulbs
V. Surgical Lamp Light
W. Locomotive Headlight Bulb
X. Railway Train Headlamp
ETC.
Catalogue Of Quartz Halogen Bulb
| Model | Specification | Lumen(Lm) | Average Life(H) | Base | Application |
| Quartz Halogen Bulb | 22.8V 40W | 1000 | 1000 | G6.35 | Grinder Projector Lamp |
| Quartz Halogen Bulb | 22.8V 50W | 1000 | 1000 | G6.35 | Surgical Shadowless Light Bulb |
| Quartz Halogen Bulb | 24V 50W | 1000 | 100 | E11 | Medical Single Hole Cold Light |
| Quartz Halogen Bulb | 24V 250W | 6250 | 50 | G6.35 | Surgery Shadowless Halogen Bulb |
| Quartz Halogen Bulb | 75V 350W | 8750 | 2000 | GX6.35 | Car Fog Lights Front Lighting |
| Quartz Halogen Bulb | 75V 400W | 8750 | 2000 | GX6.35 | Photography Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 80V 1200W/230V 1000W | 30000 | 300 | G22 | Quartz Concentrating Tungsten Halogen Bulb |
| Quartz Halogen Bulb | 100V 500W | 12500 | 50 | GY9.5 | Optical Instrument Microscope Lamp |
| Quartz Halogen Bulb | 110V 600W | 13200 | 500 | P40s/41 | Train Locomotive Headlights Car Tail Light |
| Quartz Halogen Bulb | 120V 650W | 16250 | 300 | GY9.5 | Commercial Video Lights Stage Lights |
| Quartz Halogen Bulb | 120V 2000W | 50000 | 300 | GY16/G22 | Film And Television Fill Light |
| Quartz Halogen Bulb | 127V 600W | 15000 | 75 | GY9.5 | Ball Halogen Lamp Stage Video Lamp |
| Quartz Halogen Bulb | 230V 650W | 16250 | 300 | GY9.5 | Ball Halogen Lamp |
| Quartz Halogen Bulb | 230V 800W | 20000 | 300 | R7S | High Power Film Bulbs |
| Quartz Halogen Bulb | 230V 1000W | 30000 | 300 | G22/GX9.5 | Video Bulb Aviation Ship Light Stage Spot Bulb |
| Quartz Halogen Bulb | 230V 3000W | 75000 | 300 | G38/GY16 | Film and Television Wedding Performance Spotlight Stage |
| Quartz Halogen Bulb | 230V 5000W | 125000 | 300 | G38 | Wedding Bar Stage Light Bulbs |
| Quartz Halogen Bulb | 28v 75w | 1875 | 2000 | 1982SP | Railway Locomotive Halogen Bulbs |
| Quartz Halogen Bulb | 115V 575W | / | 300 | G9.5 | ETC Stage Soft Spot Zoom Light |
| Quartz Halogen Bulb | 115v 750w | / | 2000 | G9.5 | Film And Television Photography Stage |
| Quartz Halogen Bulb | 30V 200W/250W | / | 2000 | / | Lighting Display Bulbs |
| Quartz Halogen Bulb | 230v 115V 575W | / | 2000 | / | Stage Film And Television Light |
| Quartz Halogen Bulb | 115V 1000W | / | 2000 | / | Halogen Display Optic Lamp |
| Quartz Halogen Bulb | 120V 500W | / | 100 | / | Stage Halogen Bulbs |
| Quartz Halogen Bulb | 230V 1250W | / | 300 | / | Iodine Tungsten Lamp |
| Quartz Halogen Bulb | 230V 2000W | / | 300 | / | infrared heater |
Tips to Improve the Life Of Quartz Halogen Bulb
➊ Keep the surface of the bulb clean, and do not touch the glass part of the bulb directly with your hands during use
If there are fingerprints, wipe with a dry cloth dipped in alcohol.
❷ Try to avoid strong vibration before and after using the bulb, and handle it with care to avoid burning the filament.
❸ The light bulb will generate high temperature during use, so please do not touch it with your hands, and do not use flammable and explosive items
near.
❹ The filament is brittle just after the bulb is turned off, so avoid vibration, do not move it immediately, and
Try to move the filament only after it has cooled down.
